Installation Process
Click on any of the photos below for a larger image of the installation process.
![]() |
|---|
Step 1:

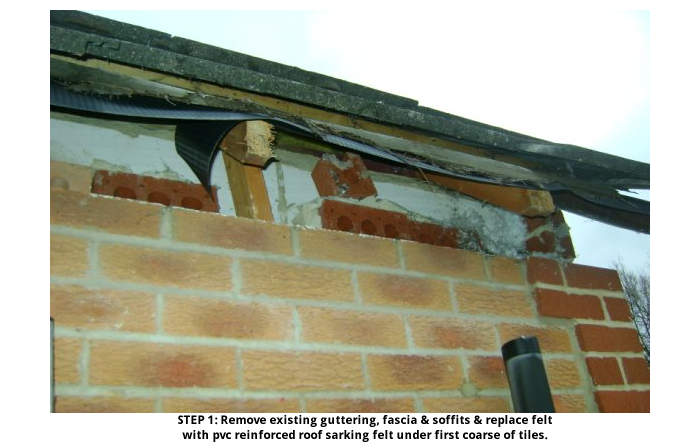

Remove existing guttering, fascia & soffits & replace felt with pvc reinforced roof sarking felt under first coarse of tiles.
![]() |
|---|
Step 2:

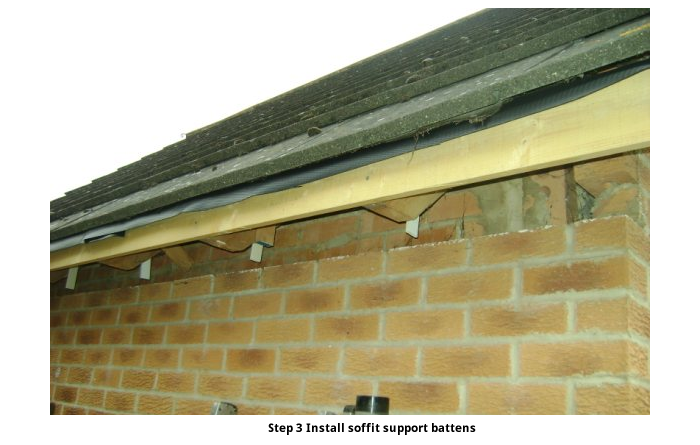

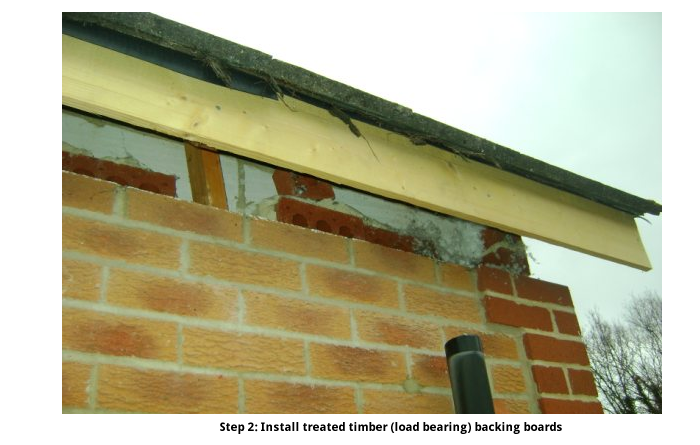

Install treated timber (load bearing) backing boards & soffit support battens
![]() |
|---|
Step 3:

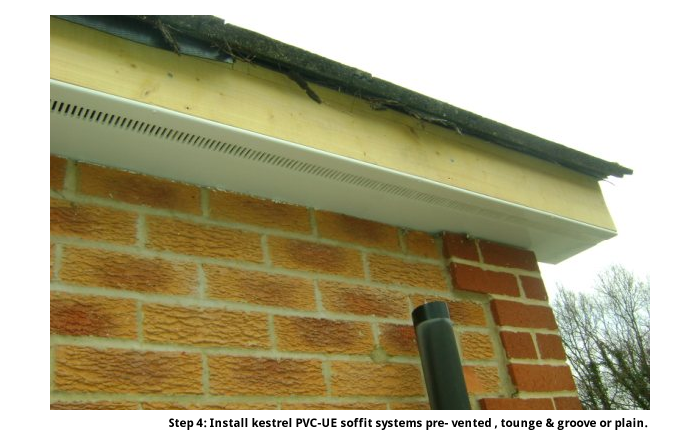

Install kestrel PVC-UE soffit systems pre- vented , tounge & groove or plain.
![]() |
|---|
Step 4:

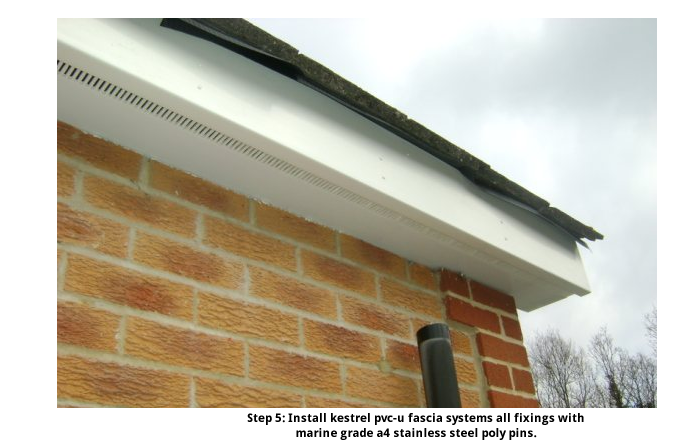

Install kestrel pvc-u fascia systems all fixings with marine grade a4 stainless steel poly pins.
![]() |
|---|
Step 5:

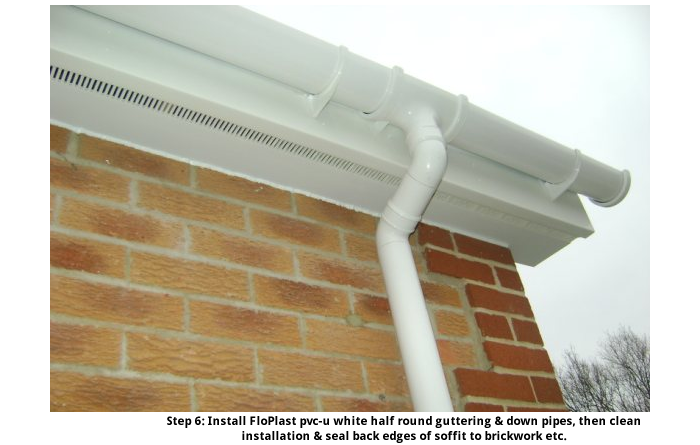

Install FloPlast pvc-u white half round guttering & down pipes, then clean installation & seal back edges of soffit to brickwork etc.
![]() |
|---|
Step 6:

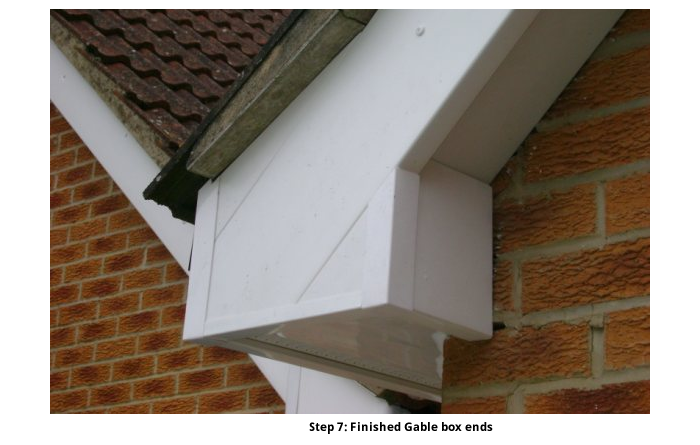

Finished Gable box ends
| Ornate Barge Board Systems | |
|---|---|
![]() |
![]() |
| Dutch Barn Ends | |
|---|---|
![]() |
![]() |
